Portfolio
A sample of what leaves our shop. Client names withheld — the parts speak for themselves.

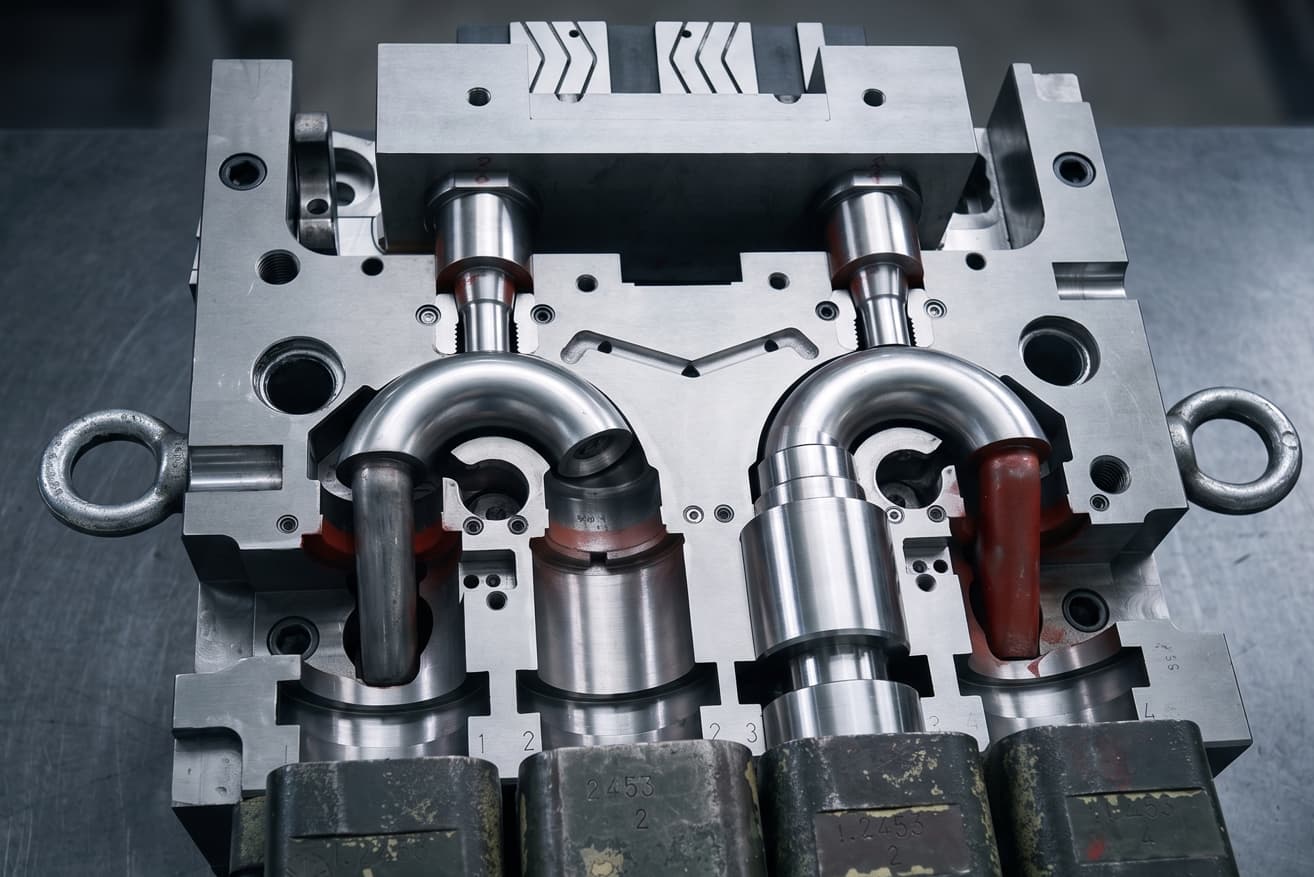

Complete core and cavity set machined in pre-hard steel for a PVC pipe fitting mold, including cooling channel work and fitting to the existing mold base. PVC's corrosive nature demands the right steel and the right finish — this is our home turf.
Design, fabrication and fitting of sealing and cutting dies for bag-making lines. Ground flat and parallel to keep seal quality consistent across the full web width — the difference between a line that runs and a line that leaks.

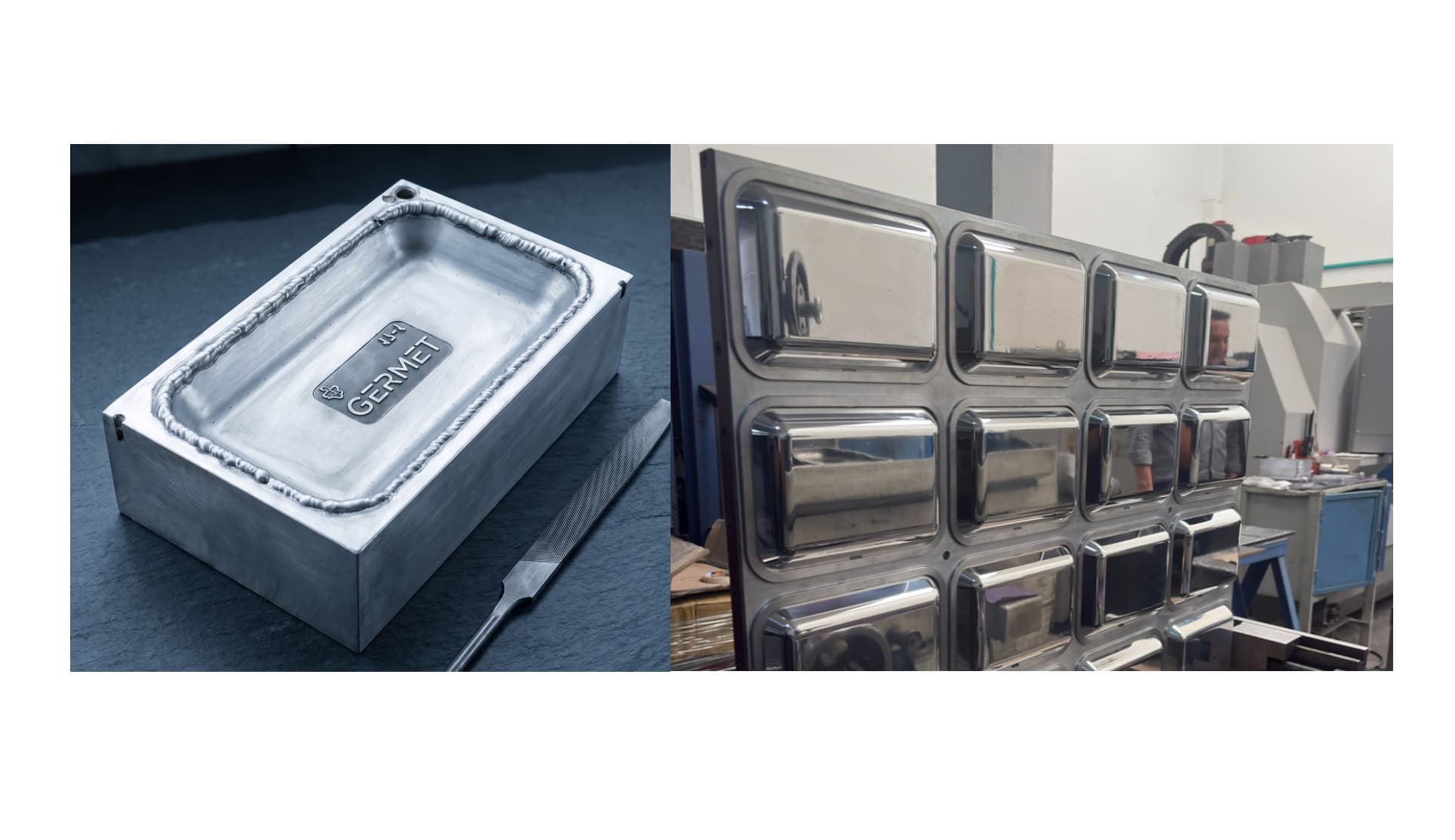

The damaged cavity is repaired using TIG welding and re-machined to the original geometry based on our own reverse-engineered CAD model. We also manufacture preforming cores.

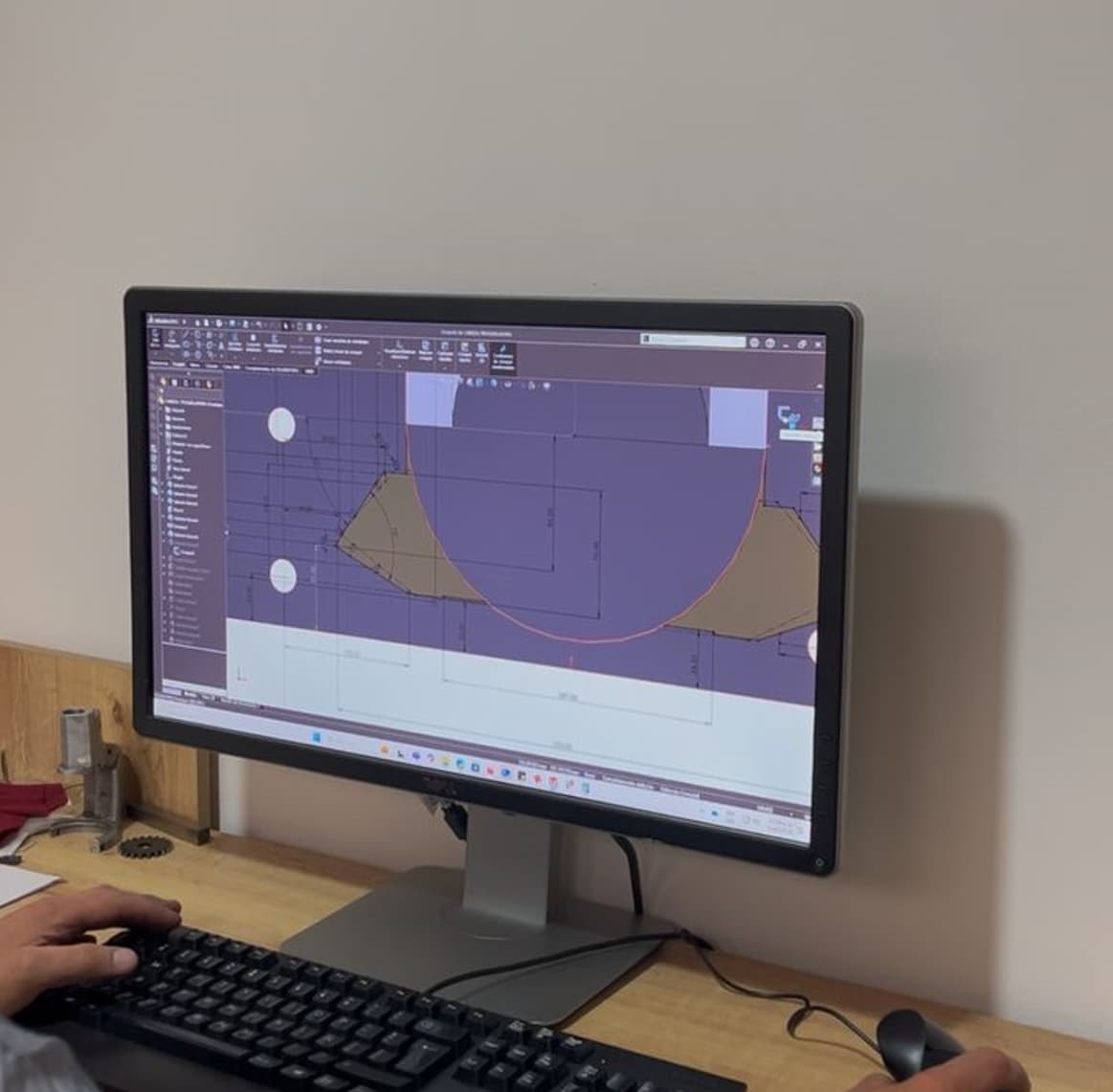

Designing tooling for thermoforming and foam molding operations — new fabrication and repair of existing tools.
Turned, hardened and ground guide columns and bushings to print — the components that decide whether a die runs true for years or wears out in months.

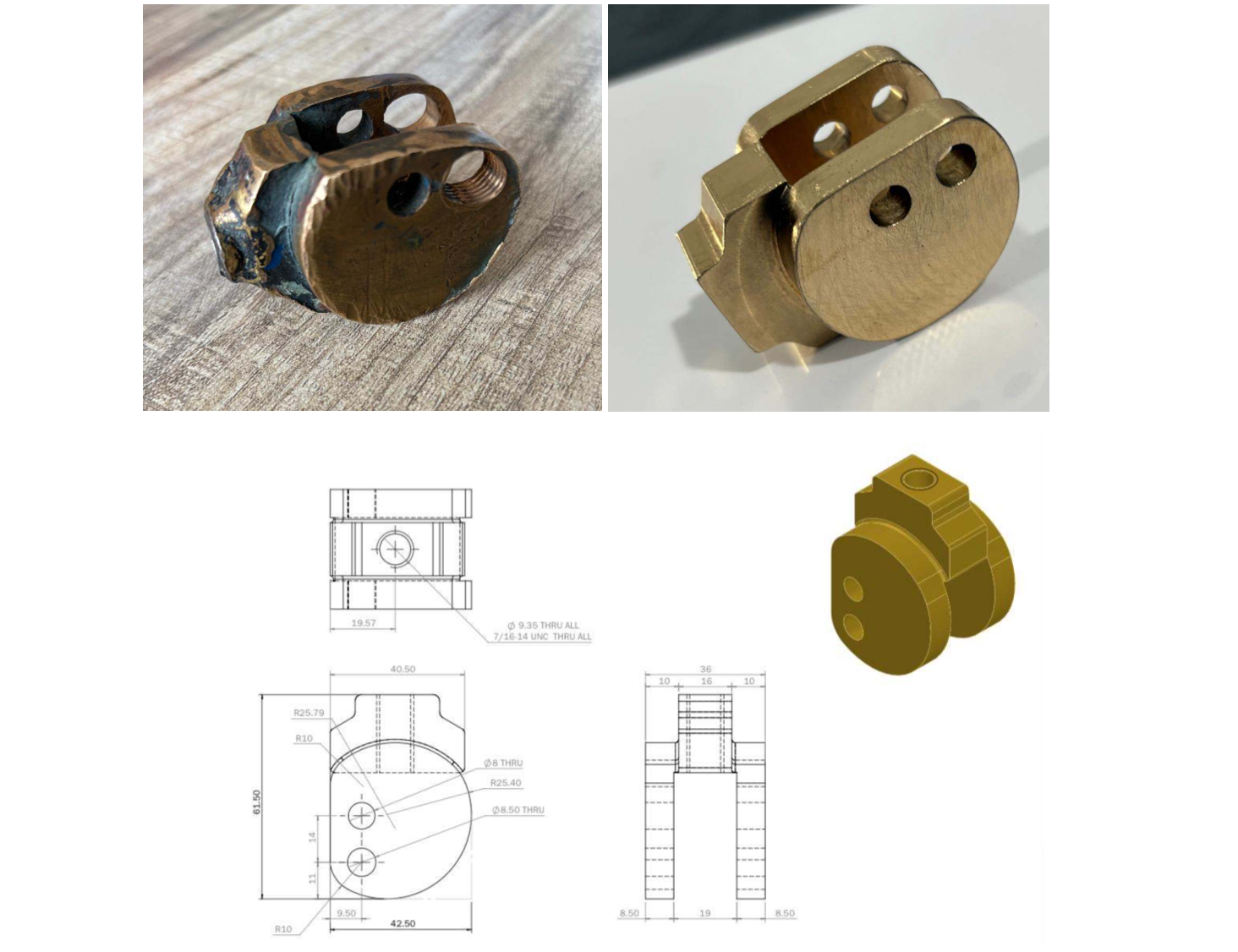

Worn machine component with no drawing and no OEM support: measured, modeled in CAD, and remade with an improved material spec. The client got the part in days — and now owns the drawing for every future reorder.
Drawing, STEP file, or a photo of the broken part — any of the three is enough to start.
Request a quote
